Spilla per tubi

The Tubing Broach is used to remove burrs in the tubing left after perforating and broaching through the restrictions in the tubing. Tubing Broach is also used to remove scale, rust etc, from tubing I.D.
Stato di disponibilità:
  • 1,5 pollici - 5 pollici
  • Ruixin
  • Spilla per tubi
  • Lega di acciaio e lega di nichel
  • Cina Baoji
  • Wireline e Slickline
  • Standard

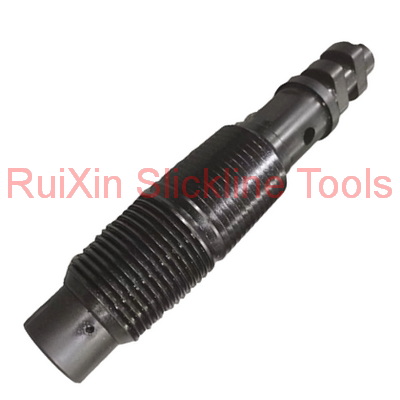

Tubing Broach Manufacturer - Ruixin

The Tubing Broach is used to remove burrs in the tubing left after perforating and broaching through the restrictions in the tubing. Tubing Broach is also used to remove scale, rust etc, from tubing I.D.

Tubing Broach General Technical Parameters

OD

Fishing neck

Connection

1.5"

1.375"

15/16-10UN

2"

1.375"

15/16-10UN

2.5"

1.75"

1-1/16-10UN

3"

1.75"

1-1/16-10UN

4"

2.313"

1-9/16-10UN

5"

2.313"

1-9/16-10UN

Note:More customized parts are available upon request.

Tubing Broach Description

The Tubing Broach is used for re-sizing inside the diameters of downhole completion equipment. The most commonly used broaching tools are made from one solid piece of material. A series of staggered cutting edges starts at a small diameter and incrementally increases until reaching its maximum diameter.

Tubing Broach Notes

The tubing broach slickline is only used to scrape off a certain amount of obstructions. When the obstruction in the oil pipe is too thick or the oil pipe is deformed seriously, other tools shall be considered.
